Specifications
Video & Audio
NVR
- Number of Channels: 8
- Display Resolution:
- Full Screen: 3840x2160, 2560x1440
- Split Screen: 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- Video Output:
- VGA (1 Channel): 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- HDMI (1 Channel): 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- Synchronous Playback: 11/4/6/8/9 Channels
- Stream Type: Audio & Video Streaming, Video-Only Streaming
Camera
- Image Sensor: 1/2.7” CMOS Sensor
- Effective Pixels: 8MP (3840x2160)
- Video Frame Rate: 20FPS Max
- Lens:
- Focal Length: 4.1mm Fixed
- Aperture: F=2.0
- Minimum Illumination: 0.1Lux (with IR LEDs)
- IR Cut Filter: Auto-Switching
- IR LED Quantity: 4 pcs
- Spotlight: 4 pcs, 70 Lumens, 5500-6000K
- Field of View (FOV):
- Diagonal: 107°
- Horizontal: 85°
- Vertical: 44°
- Night Vision Range:
- Color Mode: up to 100ft
Video Bit Rate
- Mainstream: 128Kbps – 6000Kbps (Default: 4096Kbps)
- • Substream: 64Kbps – 1024Kbps (Default: 768Kbps)
Pan & Tilt
- Horizontal (Pan): 360°
- • Vertical (Tilt):
80°
Two-Way Talk
- Supported via Defender Empower App with built-in microphone & speaker

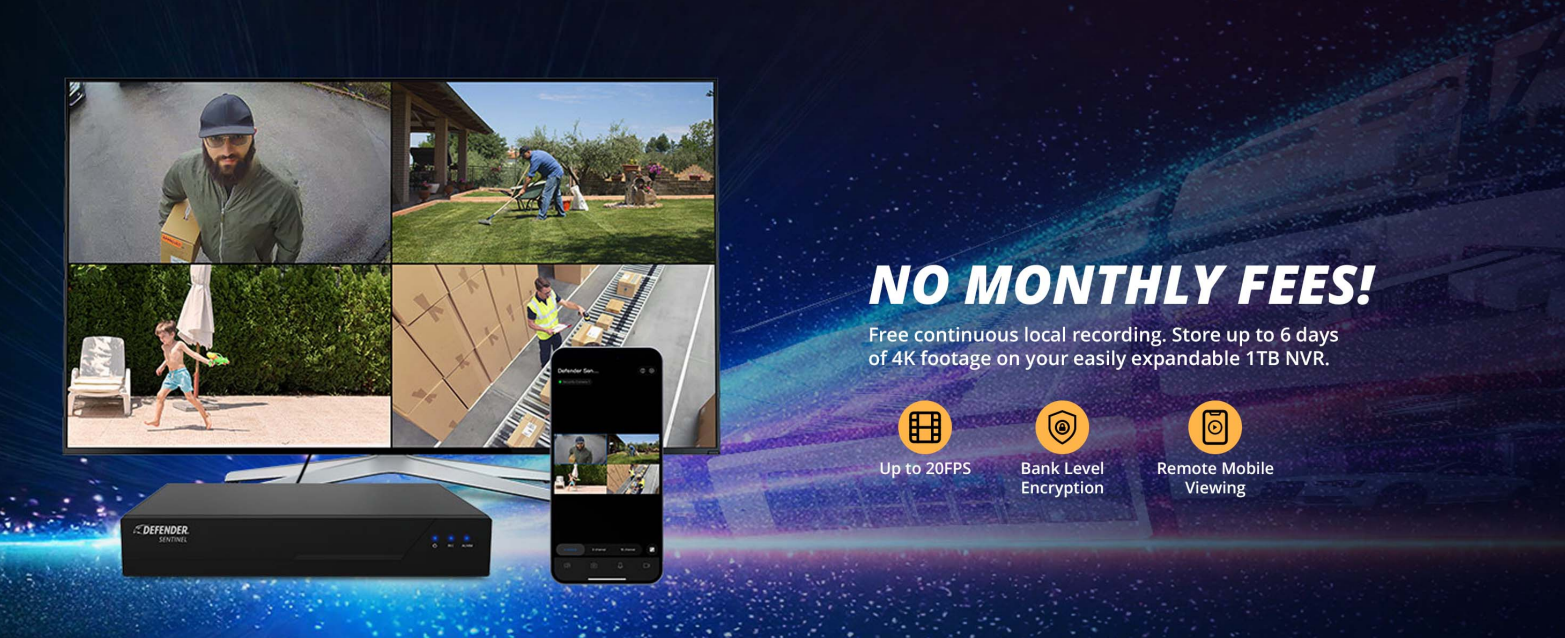

Recording
- Recording Resolution: 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024,1280x800, 1280x720, 1024x768
- Recording Mode: Motion Recording, Continuous Recording
- Frame Rate: 1FPS – 20FPS (Default: 18FPS)
- Recording Time:
- 4K (3840x2160) Resolution Recording (Up to 14 FPS)
- 1TB (4 Cameras) = Up to 11 Days (Average Recording Time)
Network
- Network Interface: 1x RJ45 10/100Mbps Self-Adaptive Ethernet Port for LAN/WAN
- Network Protocols: HTTP, TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, SMTP, P2P
- Mobile Access: Defender Empower App
- Remote Users: 10 Shared App Accounts
- Supported Standards: IEEE 802.3af
- Max PoE Power: 30W Per Port
HDD (Storage)
- Capacity: 1TB Included, Max 8TB Allowed
- HDD Interface: 1x SATA
NVR Interface
- USB Interface: 2x USB 2.0
- Audio In/Out: 1 Channel 3.5mm Jack
- Alarm: Built-in Buzzer Alarm
General Specifications
Power Supply & Consumption
- NVR: DC 48V/2A, Max 96W
- Camera:
- PoE Interface: 1x RJ45, 10/100Mbps, IEEE 802.3af, 48V Active
- DC Power Port: DC 12V/1A
- Power Consumption: Max 6W
Operating Temperature
- NVR: -10°C – 45°C (14°F – 113°F)
- Camera: -20°C – 60°C (-4°F – 140°F)
Dimensions (L x W x H)
- NVR: 10.03 x 7.68 x 1.65 in (255 x 195 x 42 mm)
- Camera: 4.9 x 6.5 x 4.6 in (123.4 x 164.5 x 116.4 mm)
Weight
- NVR: 2.65 lbs (2.3 kg) including 1TB HDD
- Camera: 0.75 kg
